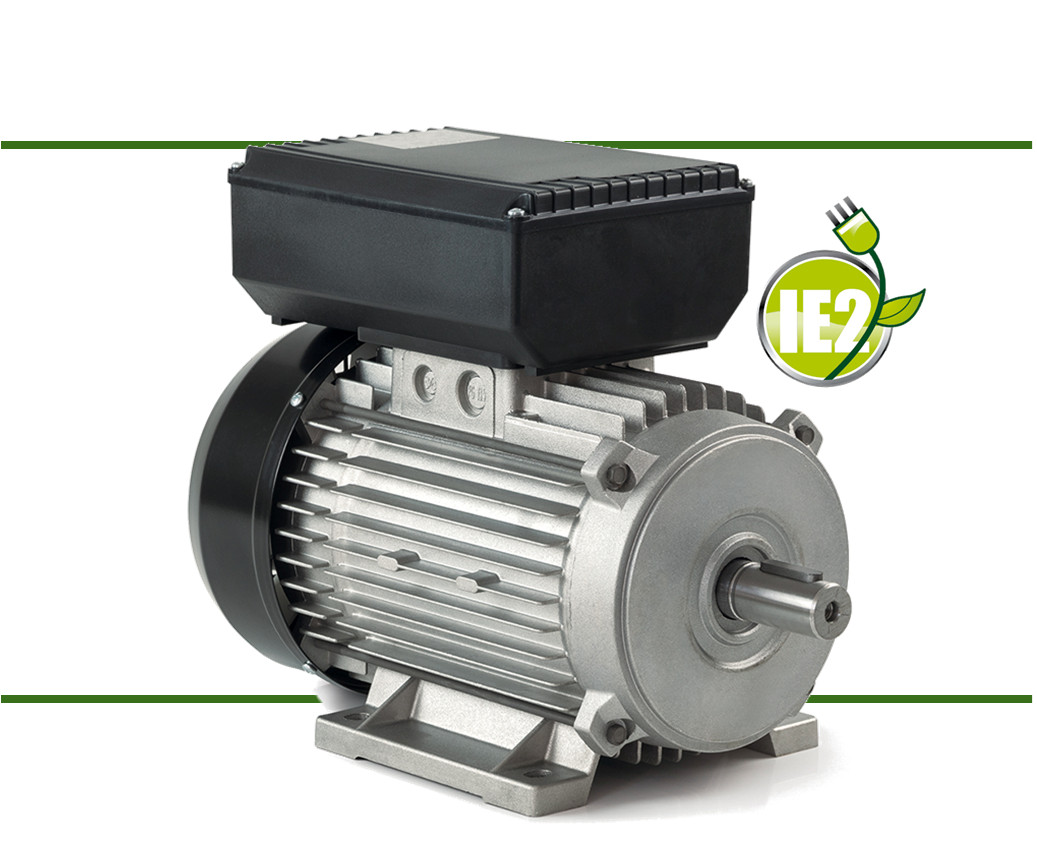

MOTORS IEC STANDARD INDUCTION LOW VOLTAGE AC – 1 PHASE – 2 POLES – IE2

● IE2 HIGH EFFICIENCY
● Efficiency testing method according to IEC 60034-2-1
● IE2 efficiency class according to IEC 60034-30
● Made in Italy
● Outputs up to 3 kW / 50 Hz
● IP55
● Special executions on request

modelIEC FRAME SIZE
(MM)		kW (S1) – F class
230V 50 Hz		speed
rpm		efficiency
%
MM2 63MA/2no switch63M0,18280060,4
MM2 63MB/2no switch63M0,25283064,8
MME2 71MA/2electronic switch71M0,37281069,5
MME2 71MC/2electronic switch71M0,55284074,1
MME2 71MD/2electronic switch71M0,75284077,4
MMD2 80MC/2centrifugal switch80M0,75291077,4
MMD2 80MD/2centrifugal switch80M1,1286079,6
MMD2 90LA/2centrifugal switch90L1,5288081,3
MMD2 100LA/2centrifugal switch100L1,8287082,2
MMD2 100LB/2centrifugal switch100L2,2289083,2
MMD2 112MB/2centrifugal switch112M3291084,6

4 pole motors IE2 are available on request.

For IE2 60Hz motors please contact us.

Standard couplings: B3 feet, B5 flange, B14 flange, B3/B5 feet & flange, B3/B14 feet & flange
