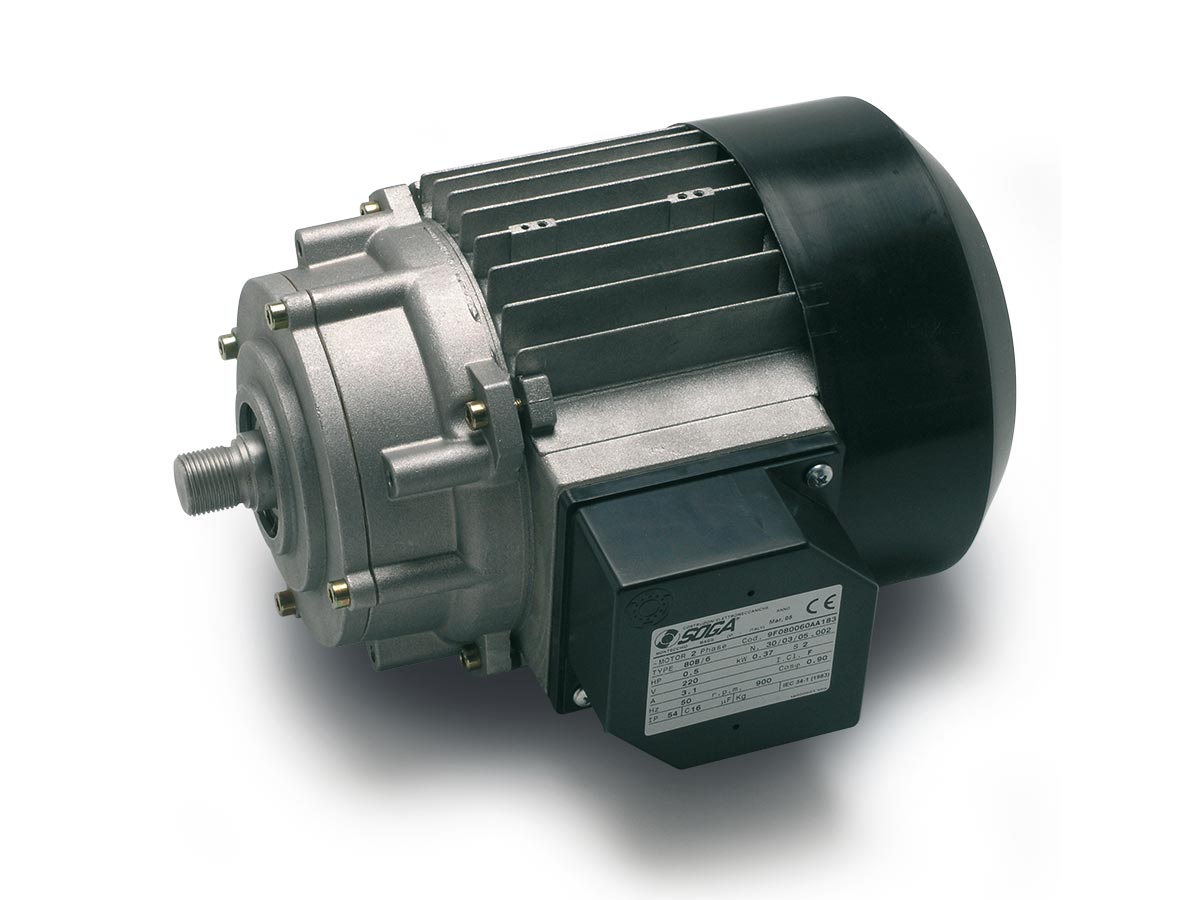

MOTORS WITH GEARBOX FOR IEC80 MOTORS

● For applications requiring speed reduction
● Integrated gearbox
● Reduction ratio R=1/9
● Compact and noiseless
● No need of maintenance

model	FRAME SIZE MM	KW – F CLASS 230/400V 50 HZ	POLES	RPM
EPC T 80 MA/2	80	0,75	2	306
EPC T 80 MA/4	80	0,37	4	150
EPC T 80 MB/4	80	0,55	4	150
EPC T 80 MC/4	80	0,75	4	150
EPC T 80 MA/6	80	0,25	6	100
EPC T 80 MB/6	80	0,37	6	100
EPC T 80 MC/6	80	0,55	6	100
EPC T 80 MA/8	80	0,18	8	73
EPC T 80 MB/8	80	0,25	8	76
EPC T 80 MA/2-4	80	0,9 – 0,63	2-4	311 – 150
EPC T 80 MA/4-6	80	0,37 – 0,25	4-6	150 – 100
EPC T 80 MB/4-6	80	0,55 – 0,37	4-6	150 – 100
EPC T 80 MA/4-8	80	0,33 – 0,25	4-8	150 – 75
EPC T 80 MB/4-8	80	0,45 – 0,3	4-8	151 – 77

EPC80
